Quantization Neural Network with Eve
In this script, we will build a quantization neural network with eve-mli, different kinds of quantization function will be compared.
# import necessary packages.
# at the beginning, ensure that the eve-mli package is in your python path.
# or you just install it via `pip install eve-mli`.
import os
import time
from datetime import datetime
import random
import numpy as np
import torch as th
import torch.nn as nn
import torch.nn.functional as F
import eve
import eve.app
import eve.app.model
import eve.app.trainer
import eve.core
import eve.app.space as space
import eve.core.layer
import eve.core.quan
from matplotlib import pyplot as plt
%matplotlib inline
os.environ["CUDA_VISIBLE_DEVICES"] = '1'
# build a basic network for trainer, use Poisson Encoder as default
class mnist(eve.core.Eve):
def __init__(self,
quan_on_a: bool = True,
quan_on_w: bool = True,
bits: int = 8,
quantize_fn: str = "Round",
range_tracker: str = "average_tracker",
average_tracker_momentum: float = 0.1,
upgrade_bits: bool = False,
neuron_wise: bool = False,
asymmetric: bool = False,
signed_quantization: bool = False,
learnable_alpha: bool = None,
upgrade_fn: callable = None,
**kwargs,):
super().__init__()
def build_quantizer(state):
return eve.core.quan.Quantizer(state,
bits = bits,
quantize_fn = quantize_fn,
range_tracker = range_tracker,
average_tracker_momentum = average_tracker_momentum,
upgrade_bits = upgrade_bits,
neuron_wise = neuron_wise,
asymmetric = asymmetric,
signed_quantization = signed_quantization,
learnable_alpha = learnable_alpha,
upgrade_fn = upgrade_fn,
**kwargs,)
if quan_on_w:
self.conv1 = eve.core.layer.QuanBNFuseConv2d(1, 4, 3, stride=2, padding=1)
self.conv1.assign_quantizer(
build_quantizer(eve.core.State(self.conv1, apply_on="param")))
else:
self.conv1 = nn.Sequential(nn.Conv2d(1, 4, 3, stride=2, padding=1), nn.BatchNorm2d(4))
self.relu1 = nn.ReLU()
if quan_on_a:
self.act_quan1 = build_quantizer(eve.core.State(self.conv1, apply_on="data"))
else:
self.act_quan1 = nn.Sequential()
if quan_on_w:
self.conv2 = eve.core.layer.QuanBNFuseConv2d(4, 8, 3, stride=2, padding=1)
self.conv2.assign_quantizer(
build_quantizer(eve.core.State(self.conv2, apply_on="param")))
else:
self.conv2 = nn.Sequential(nn.Conv2d(4, 8, 3, stride=2, padding=1), nn.BatchNorm2d(8))
self.relu2 = nn.ReLU()
if quan_on_a:
self.act_quan2 = build_quantizer(eve.core.State(self.conv2, apply_on="data"))
else:
self.act_quan2 = nn.Sequential()
if quan_on_w:
self.conv3 = eve.core.layer.QuanBNFuseConv2d(8, 16, 3, stride=2, padding=1)
self.conv3.assign_quantizer(
build_quantizer(eve.core.State(self.conv3, apply_on="param")))
else:
self.conv3 = nn.Sequential(nn.Conv2d(8, 16, 3, stride=2, padding=1), nn.BatchNorm2d(16))
self.relu3 = nn.ReLU()
if quan_on_a:
self.act_quan3 = build_quantizer(eve.core.State(self.conv3, apply_on="data"))
else:
self.act_quan3 = nn.Sequential()
if quan_on_w:
self.linear1 = eve.core.layer.QuanLinear(16 * 4 * 4, 16)
self.linear1.assign_quantizer(
build_quantizer(eve.core.State(self.linear1, apply_on="param")))
else:
self.linear1 = nn.Linear(16 * 4 * 4, 16)
self.relu4 = nn.ReLU()
if quan_on_a:
self.act_quan4 = build_quantizer(eve.core.State(self.linear1, apply_on="data"))
else:
self.act_quan4 = nn.Sequential()
self.linear2 = nn.Linear(16, 10)
def forward(self, x):
conv1 = self.conv1(x)
relu1 = self.relu1(conv1)
act_quan1 = self.act_quan1(relu1)
conv2 = self.conv2(act_quan1)
relu2 = self.relu2(conv2)
act_quan2 = self.act_quan2(relu2)
conv3 = self.conv3(act_quan2)
relu3 = self.relu3(conv3)
act_quan3 = self.act_quan3(relu3)
act_quan3 = th.flatten(act_quan3, start_dim=1).unsqueeze(dim=1)
linear1 = self.linear1(act_quan3)
relu4 = self.relu4(linear1)
act_quan4 = self.act_quan4(relu4)
linear2 = self.linear2(act_quan4)
return linear2.squeeze(dim=1)
# define a MnistClassifier
# Classifier uses the corss entropy as default.
# in most case, we just rewrite the `prepare_data`.
class MnistClassifier(eve.app.model.Classifier):
def prepare_data(self, data_root: str):
from torch.utils.data import DataLoader, random_split
from torchvision import transforms
from torchvision.datasets import MNIST
train_dataset = MNIST(root=data_root,
train=True,
download=True,
transform=transforms.ToTensor())
test_dataset = MNIST(root=data_root,
train=False,
download=True,
transform=transforms.ToTensor())
self.train_dataset, self.valid_dataset = random_split(
train_dataset, [55000, 5000])
self.test_dataset = test_dataset
self.train_dataloader = DataLoader(self.train_dataset,
batch_size=128,
shuffle=True,
num_workers=4)
self.test_dataloader = DataLoader(self.test_dataset,
batch_size=128,
shuffle=False,
num_workers=4)
self.valid_dataloader = DataLoader(self.valid_dataset,
batch_size=128,
shuffle=False,
num_workers=4)
# store accuracy result
y = {}
def plot():
global y
keys, values = list(y.keys()), list(y.values())
for k, v in y.items():
plt.plot(v,
color='green' if random.random() > 0.5 else "red",
marker='o' if random.random() > 0.5 else "*",
linestyle='-' if random.random() > 0.5 else ":",
label=k)
plt.title('accuracy over epoches (train)')
plt.xlabel('epochs')
plt.ylabel('accuracy')
plt.legend(loc="upper left")
plt.show()
def train(net, exp_name: str = "quan", data_root: str = "/home/densechen/dataset"):
global y
# replace the data_root for your path.
classifier = MnistClassifier(net)
classifier.prepare_data(data_root=data_root)
# use default configuration
# use a smaller lr for that alpha is unstable during training
classifier.setup_train(lr=1e-4)
# assign model to trainer
eve.app.trainer.BaseTrainer.assign_model(classifier)
trainer = eve.app.trainer.BaseTrainer()
# train 10 epoches and report the final accuracy
y[exp_name] = []
tic = datetime.now()
for _ in range(10):
info = trainer.fit()
y[exp_name].append(info["acc"])
info = trainer.test()
toc = datetime.now()
y[exp_name] = np.array(y[exp_name])
print(f"Test Accuracy: {info['acc']*100:.2f}%, Elapsed time: {toc-tic}")
Quan param vs Quan act
# reset y
y = {}
# define quantization neural network with quantize param, quantize act and quantize on both
quantization_neural_network_param = mnist(quan_on_w=True, quan_on_a=False).quantize()
quantization_neural_network_act = mnist(quan_on_w=False, quan_on_a=True).quantize()
quantization_neural_network_both = mnist(quan_on_w=True, quan_on_a=True).quantize()
quantization_neural_network_neither = mnist(quan_on_w=False, quan_on_a=False).quantize()
# or
# quantization_neural_network_neither = mnist().non_quanitze()
print("===> Quantization on param")
train(quantization_neural_network_param, "param")
print("===> Quantization on act")
train(quantization_neural_network_act, "act")
print("===> Quantization on both")
train(quantization_neural_network_both, "both")
print("===> Quantization on neither")
train(quantization_neural_network_neither, "neither")
plot()
===> Quantization on param
Test Accuracy: 83.58%, Elapsed time: 0:01:41.564670
===> Quantization on act
Test Accuracy: 96.52%, Elapsed time: 0:01:15.718537
===> Quantization on both
Test Accuracy: 83.30%, Elapsed time: 0:02:08.939456
===> Quantization on neither
Test Accuracy: 96.59%, Elapsed time: 0:00:46.188178
png
Round vs LSQ vs LLSQ on act only
# reset y
y = {}
# define quantization neural network with different quantization function
quantization_neural_network_round = mnist(quan_on_w=False, quantize_fn="Round").quantize()
quantization_neural_network_lsq = mnist(quan_on_w=False, quantize_fn="Lsq").quantize()
quantization_neural_network_llsq_l1 = mnist(quan_on_w=False, quantize_fn="Llsq", regular="l1").quantize()
quantization_neural_network_llsq_l2 = mnist(quan_on_w=False, quantize_fn="Llsq", regular="l2").quantize()
print("===> Quantization with Round")
train(quantization_neural_network_round, "Round")
print("===> Quantization with lsq")
train(quantization_neural_network_lsq, "lsq")
print("===> Quantization with llsq_l1")
train(quantization_neural_network_llsq_l1, "llsq_l1")
print("===> Quantization with llsq_l2")
train(quantization_neural_network_llsq_l2, "llsq_l2")
plot()
===> Quantization with Round
Test Accuracy: 95.72%, Elapsed time: 0:01:14.043124
===> Quantization with lsq
Test Accuracy: 94.90%, Elapsed time: 0:01:24.896148
===> Quantization with llsq_l1
Test Accuracy: 95.08%, Elapsed time: 0:02:05.949373
===> Quantization with llsq_l2
Test Accuracy: 95.35%, Elapsed time: 0:02:11.568797
png
Average tracker vs Global tracker
# reset y
y = {}
# define quantization neural network with different quantization function
quantization_neural_network_average_tracker = mnist(range_tracker="average_tracker").quantize()
quantization_neural_network_global_tracker = mnist(range_tracker="global_tracker").quantize()
print("===> Quantization with average range tracker")
train(quantization_neural_network_average_tracker, "average")
print("===> Quantization with global range tracker")
train(quantization_neural_network_global_tracker, "global")
plot()
===> Quantization with average range tracker
Test Accuracy: 82.03%, Elapsed time: 0:02:10.593734
===> Quantization with global range tracker
Test Accuracy: 84.06%, Elapsed time: 0:02:12.500429
png

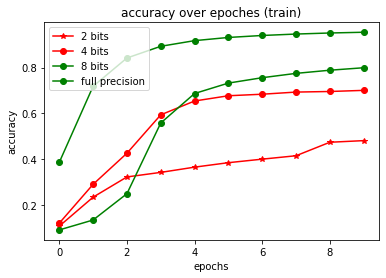

Round with with different bits¶
# reset y
y = {}
# define quantization neural network with different configuration
quantization_neural_network_bits_2 = mnist(bits=2).quantize()
quantization_neural_network_bits_4 = mnist(bits=4).quantize()
quantization_neural_network_bits_8 = mnist(bits=8).quantize()
quantization_neural_network_full_precision = mnist().non_quantize()
print("===> Quantization with 2 bits")
train(quantization_neural_network_bits_2, "2 bits")
print("===> Quantization with 4 bits")
train(quantization_neural_network_bits_4, "4 bits")
print("===> Quantization with 8 bits")
train(quantization_neural_network_bits_8, "8 bits")
print("===> Quantization with full precision")
train(quantization_neural_network_full_precision, "full precision")
plot()
===> Quantization with 2 bits
Test Accuracy: 45.51%, Elapsed time: 0:02:10.259819
===> Quantization with 4 bits
Test Accuracy: 71.16%, Elapsed time: 0:02:08.941098
===> Quantization with 8 bits
Test Accuracy: 81.84%, Elapsed time: 0:02:07.281995
===> Quantization with full precision
Test Accuracy: 96.11%, Elapsed time: 0:01:40.056623
png

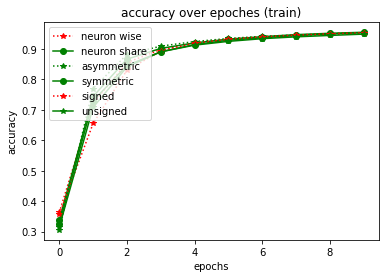

quan with other arguments
# reset y
y = {}
# define quantization neural network
quantization_neural_network_neuron_wise = mnist(neuron_wise=True)
quantization_neural_network_neuron_share = mnist(neuron_wise=False)
quantization_neural_network_asymmetric = mnist(asymmetric=True)
quantization_neural_network_symmetric = mnist(asymmetric=False)
quantization_neural_network_signed_quantization = mnist(signed_quantization=True)
quantization_neural_network_unsigned_quantization = mnist(signed_quantization=False)
print("===> Quantization with neuron wise")
train(quantization_neural_network_neuron_wise, "neuron wise")
print("===> Quantization with neuron share")
train(quantization_neural_network_neuron_share, "neuron share")
print("===> Quantization with asymmetric")
train(quantization_neural_network_asymmetric, "asymmetric")
print("===> Quantization with symmetric")
train(quantization_neural_network_symmetric, "symmetric")
print("===> Quantization with signed quantization")
train(quantization_neural_network_signed_quantization, "signed")
print("===> Quantization with unsigned quantization")
train(quantization_neural_network_unsigned_quantization, "unsigned")
plot()
===> Quantization with neuron wise
Test Accuracy: 95.60%, Elapsed time: 0:01:39.704981
===> Quantization with neuron share
Test Accuracy: 95.79%, Elapsed time: 0:01:48.575900
===> Quantization with asymmetric
Test Accuracy: 95.84%, Elapsed time: 0:01:32.690768
===> Quantization with symmetric
Test Accuracy: 96.14%, Elapsed time: 0:01:42.991659
===> Quantization with signed quantization
Test Accuracy: 95.88%, Elapsed time: 0:01:51.287698
===> Quantization with unsigned quantization
Test Accuracy: 95.60%, Elapsed time: 0:01:36.948094
png
